Spray Machines

  • Vertical oscillators (short-stroke)

  • Horizontal reciprocators (long-stroke)

  • Programmable gun movers (multi-axis)

  • Spray gun positioners (in/out)

  • Powered rotators

Artomation - The Art of Automation

CSG has added the Artomation® line of automated spray machines to our turnkey finishing systems. Vertical or Horizontal, 1, 2 or 3-Axis, your spray machine will be designed and built to meet your specific requirements.



Follow the link below to learn more about these precise and flexible automated coating machines.
www.artomation.com

Yaskawa Motoman paint robot integration for aerospace coating
Modular test panel spray paint machine, vertical, with integration of paint supply and atomizers

News Release - Coating Systems Group Vertical Oscillator

A vertical oscillator has a smooth harmonic motion to move automatic electrostatic spray guns or powder guns for a superior coating application. The CSG model CVO can be used with any brand of spray atomizers or powder guns and can be customized as needed.

​

​

  • Application: Powder or Liquid Paint versions available

  • Capacity: 100 pounds live load

  • Stroke Length: Adjustable, 5” to 18”

  • Speed Range: 6 to 60 cycles/minute by VF Drive

  • Motor Voltage: Specify plant 3-phase voltage

  • Motor rating: 1.5 horsepower, 1750 RPM

  • Mounting: Floor tracks for in/out adjustment

  • Spray Gun Adapters:  Customized for user

Horizontal X-Y spray machine for high-tech coatings with shuttle for product loading

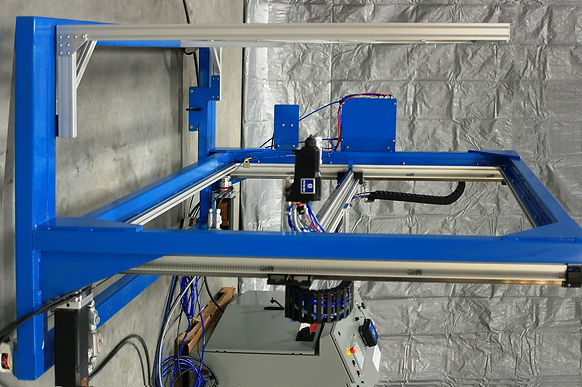

Test panel paint spray machine, vertical X-Y (H-bot type), with integral target rack
Horizontal X-Y test panel spray machine with rotation to vertical orientation
Horizontal spray machine for powder coating with auto shuttle trays
Indexing or continuous chain-on-edge spindle conveyor with integration of isolation unit for electrostatic application of waterborne paints
Heavy-duty vertical oscillators for powder coating or dry ice blasting
Low-cost Artomation PanelPro Junior AC with XP AC motors
  • Air atomized paint spray

  • Air-assisted airless

  • Electrostatic rotary atomizers

  • Electrostatic powder spray

  • Fluidized powder beds

  • Robot paint spray

  • Controlled dip

Fanuc robot integration for UV paint curing applications
Vertical reciprocator with spray gun extensions for ID coating
